X-Frame - Upright

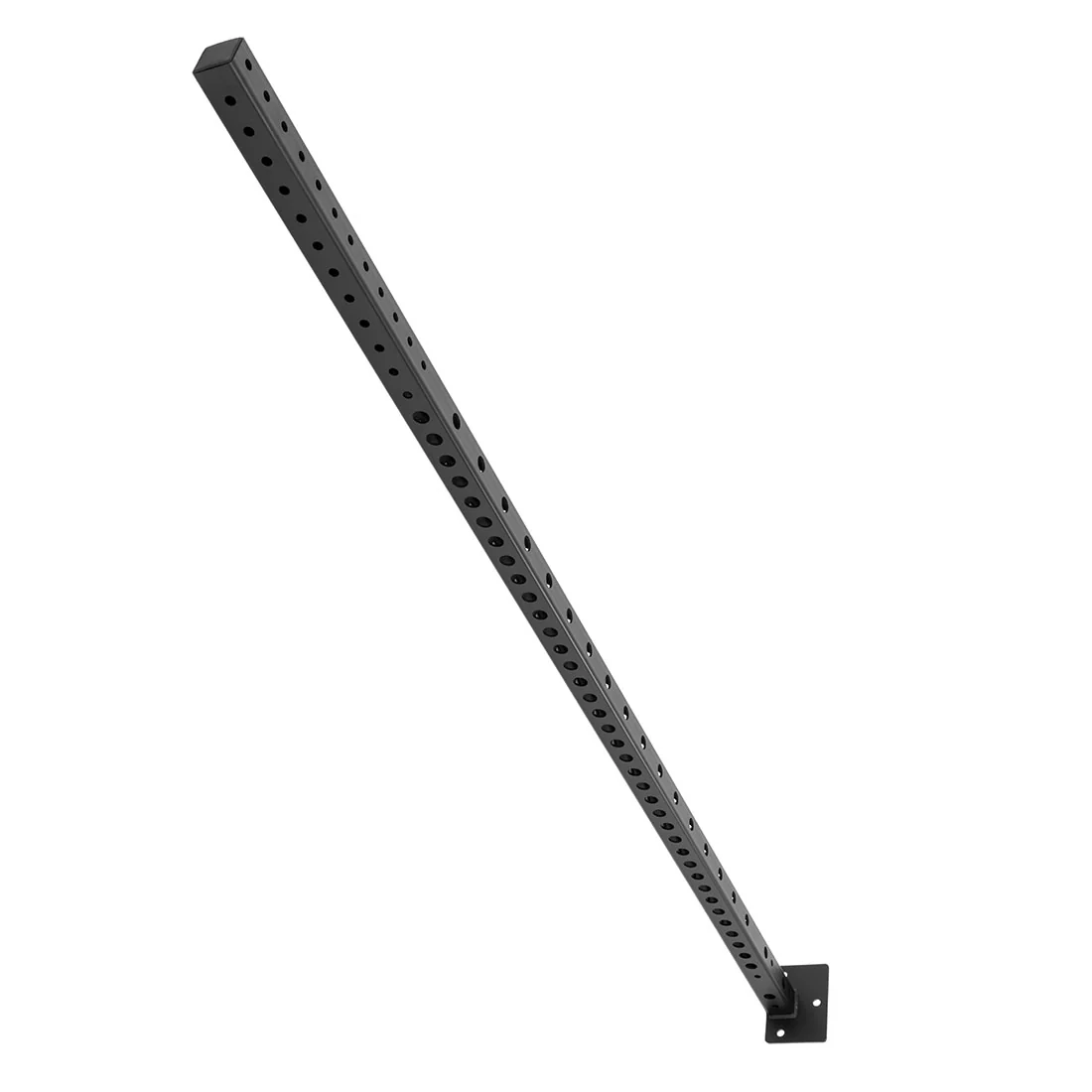

Upright - 2700mm (9ft)

The SMAI Upright is the main part of the rig which is required for all configurations. The beam is laser cut with 34 x 1 corresponding holes for J-Hooks, squatting arms, a torsonator, dipping handle placement and height adjustment. With 20‚ 40 laser cut holes on top of the upright there are plenty of options in regards to low and high settings or even offsetting crossbeams if desired on corresponding sections of the rig. The 9ft Upright is best suited for standard ceiling heights in commercial premises.

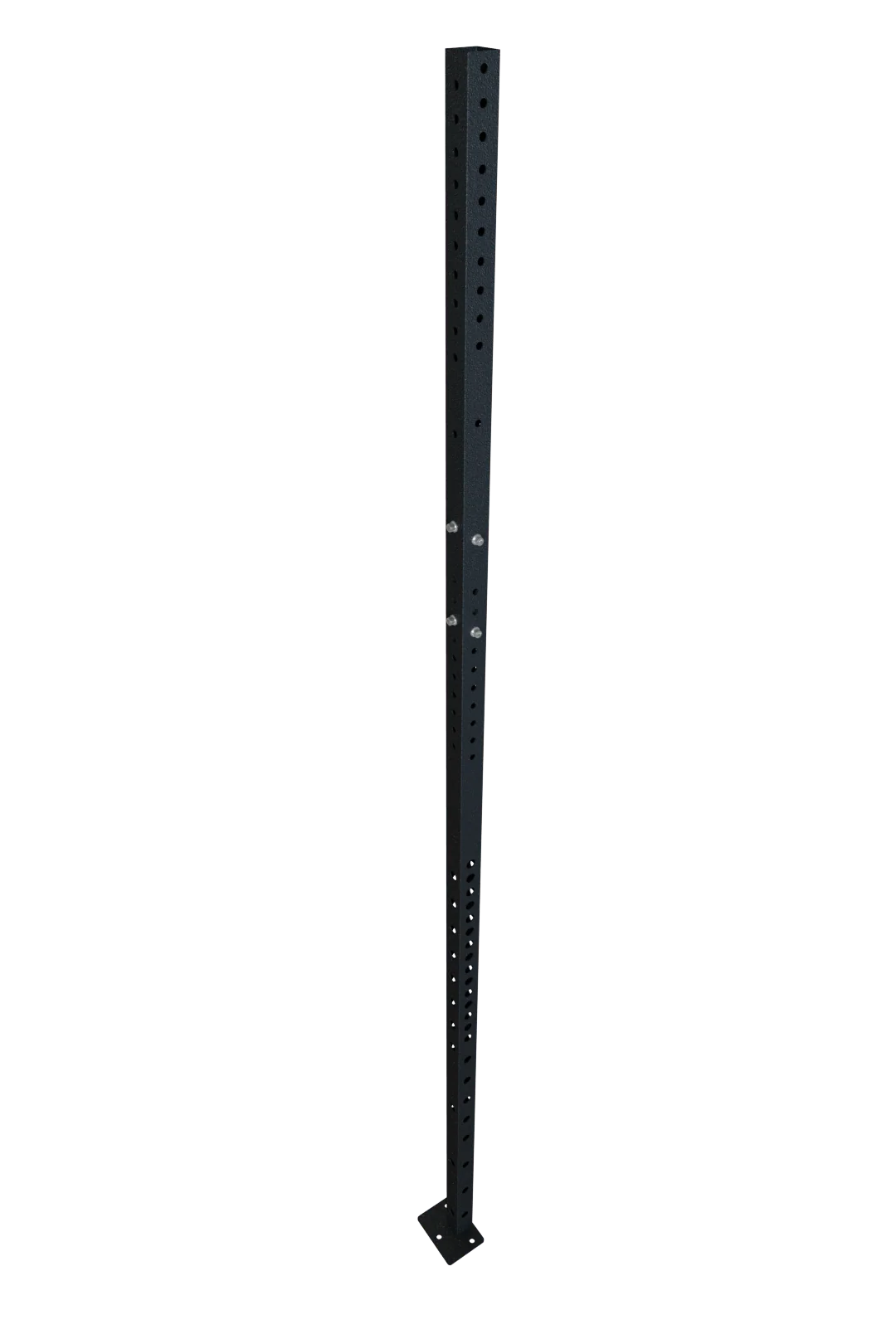

Upright - 3650mm (12ft)

The 12ft Upright allows you to add gym rings, climbing ropes and other functional equipment which gives you the clearance to do exercises such as ring muscle ups.

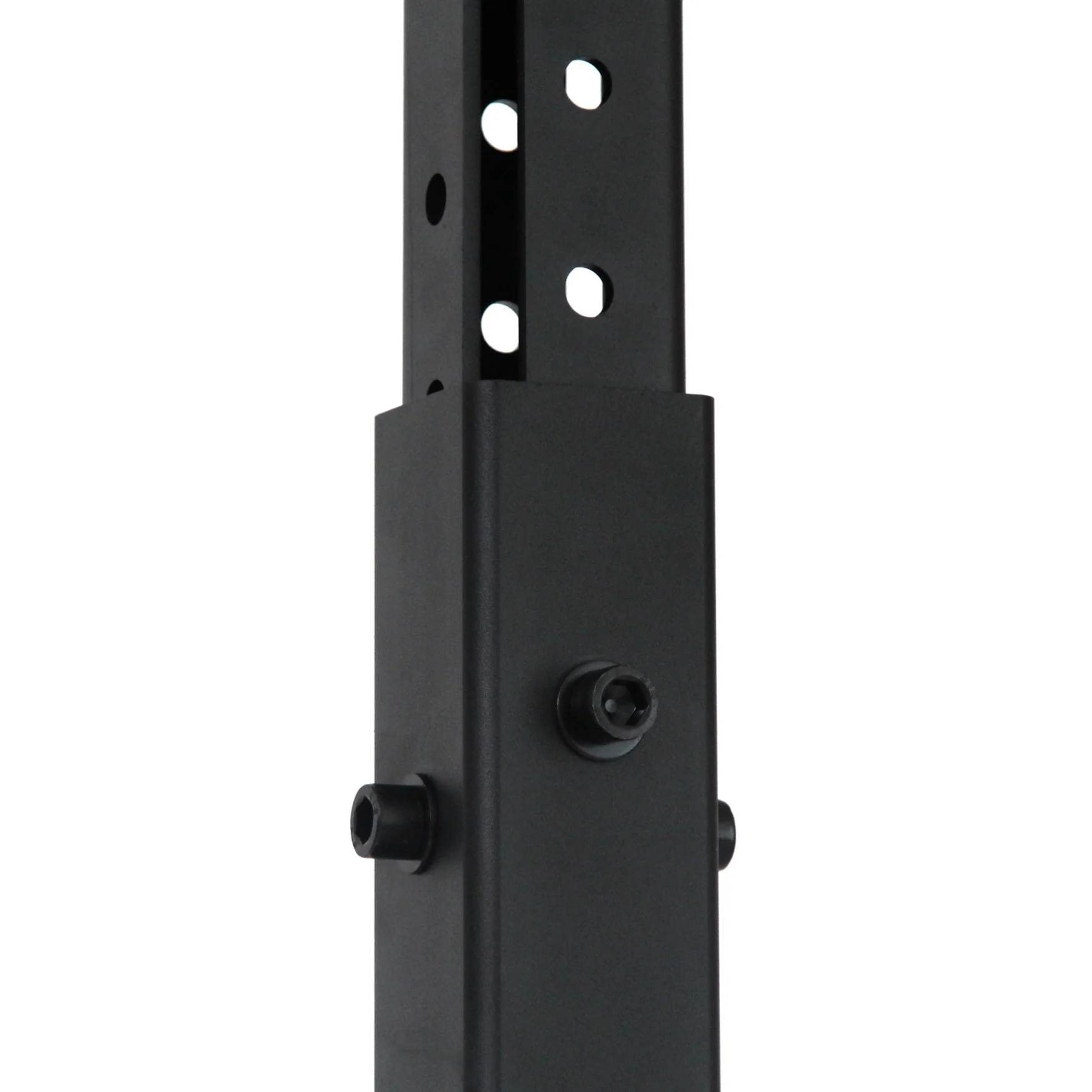

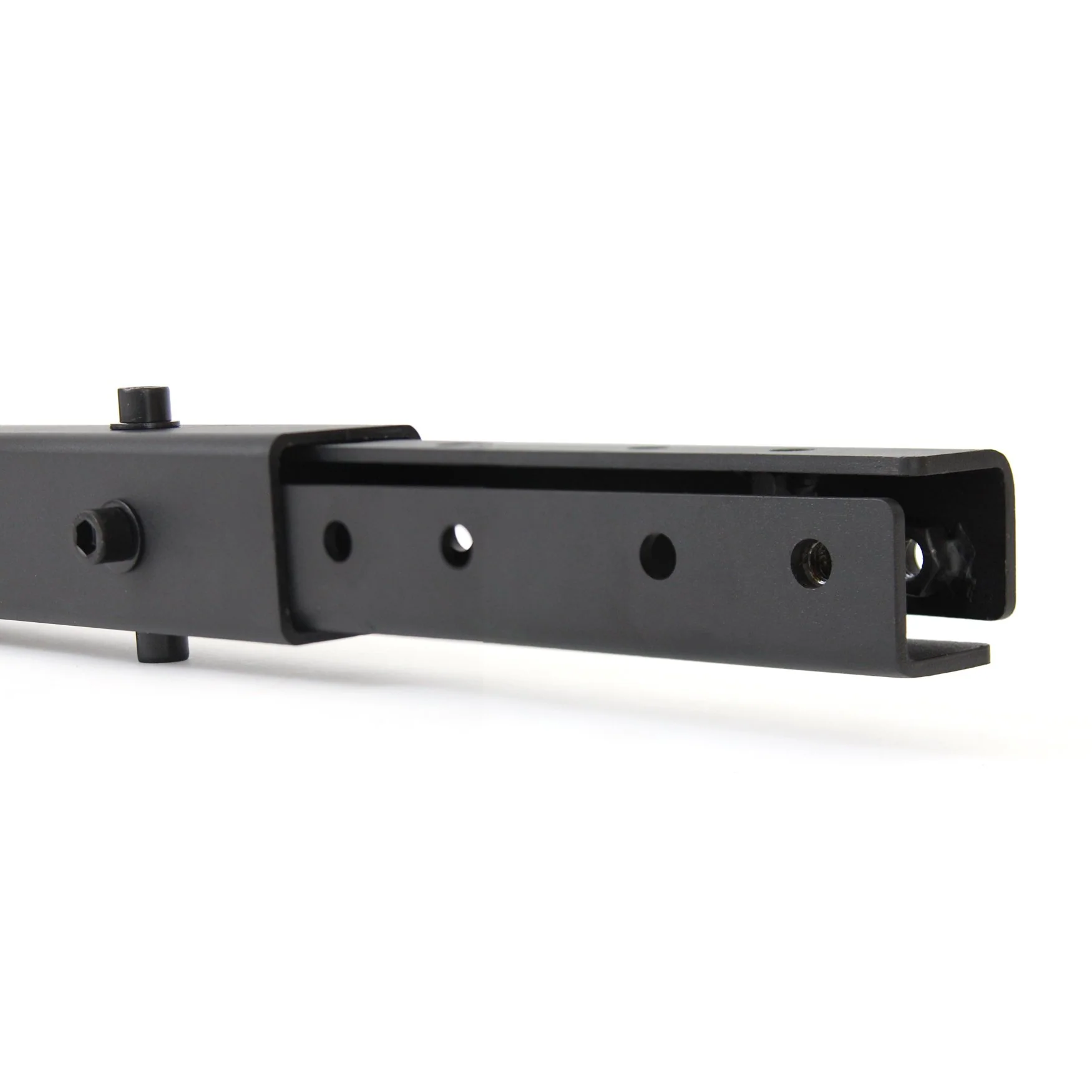

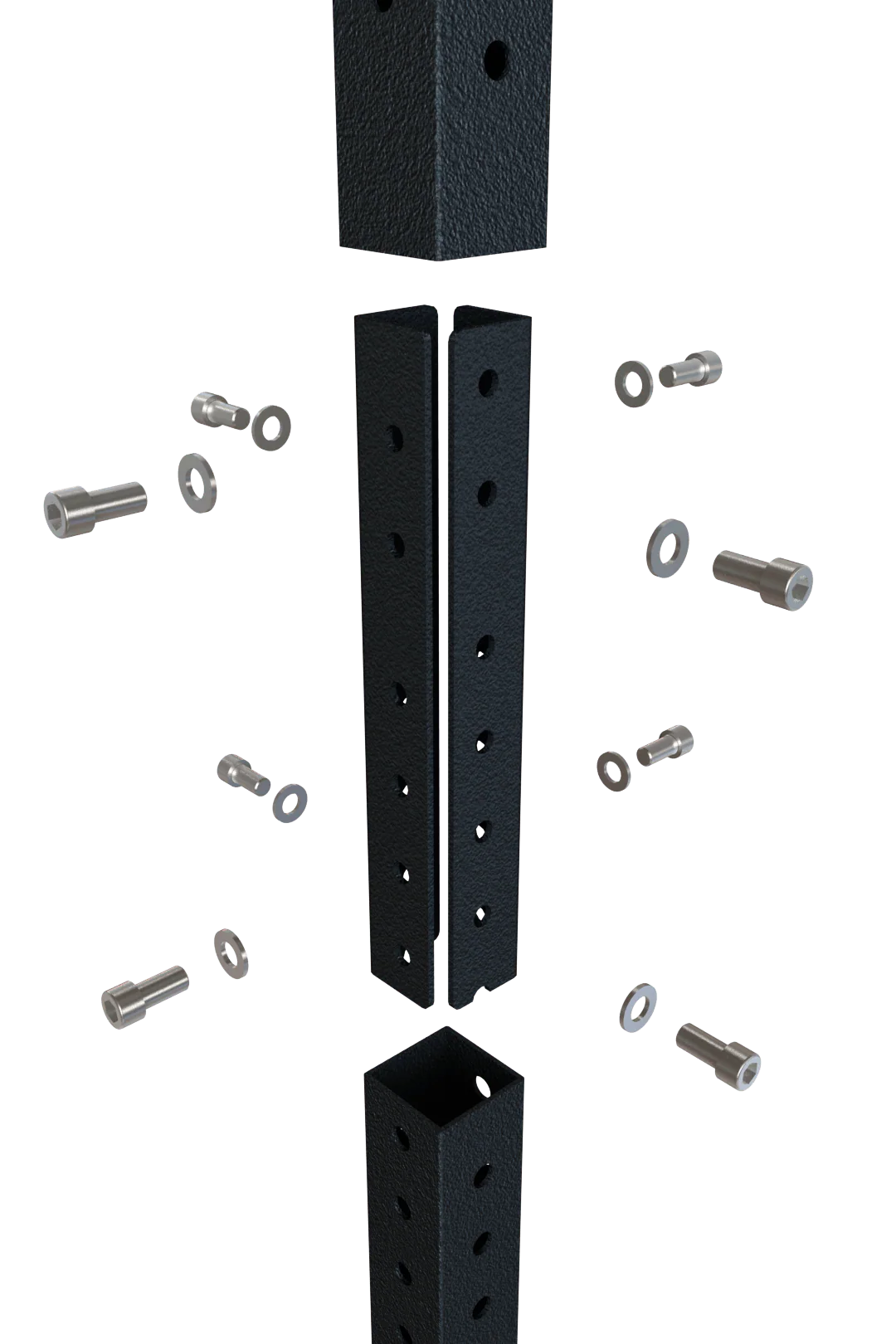

The upright is shipped as two sections (9ft + 3 ft) that bolt together for easy transport due to the length. Compatible with the SMAI Iron Base Plate for those who are unable to fix their frame to the floor or want to transport the rig between indoor and outdoor locations for events.

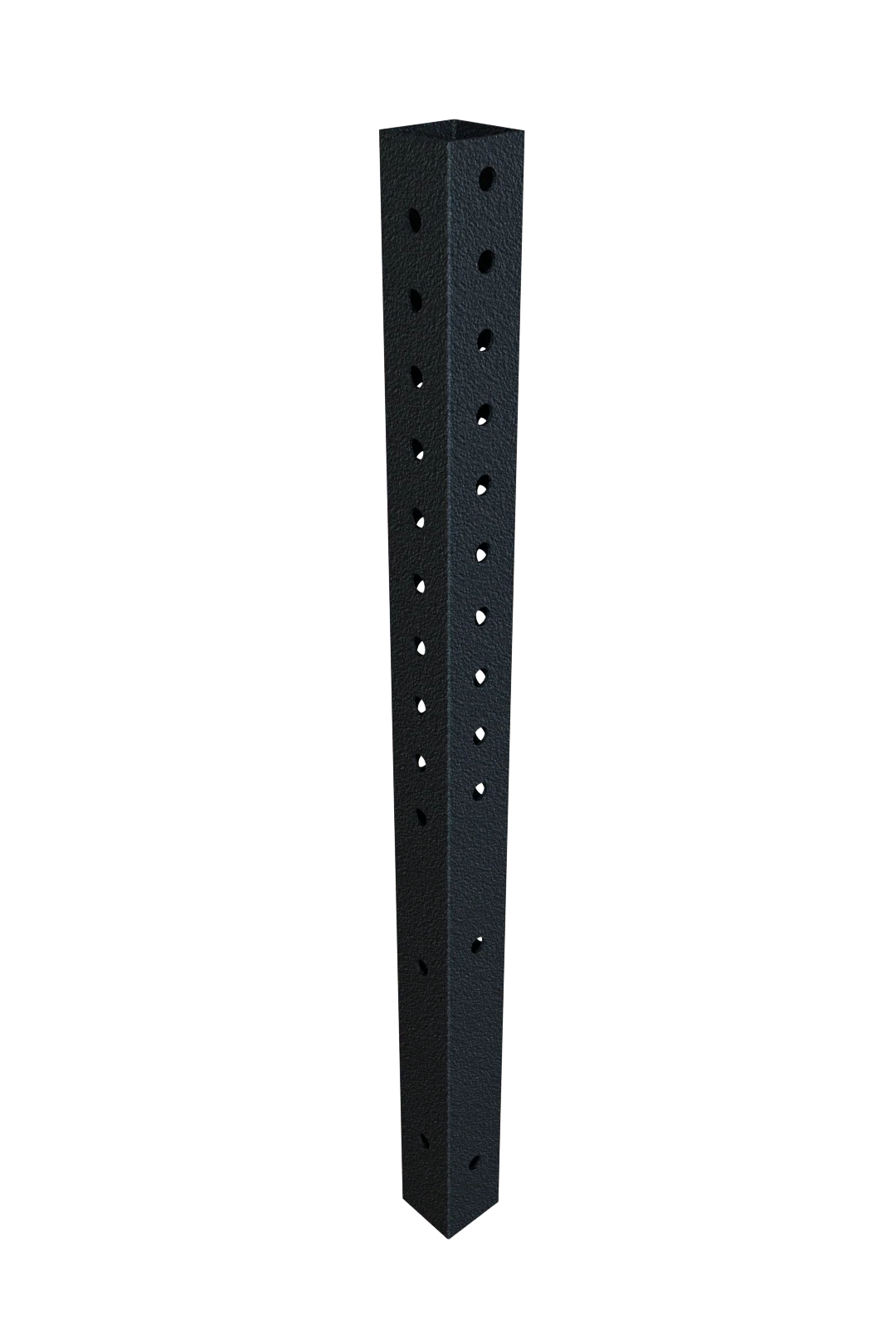

Upright - 950mm (3ft)

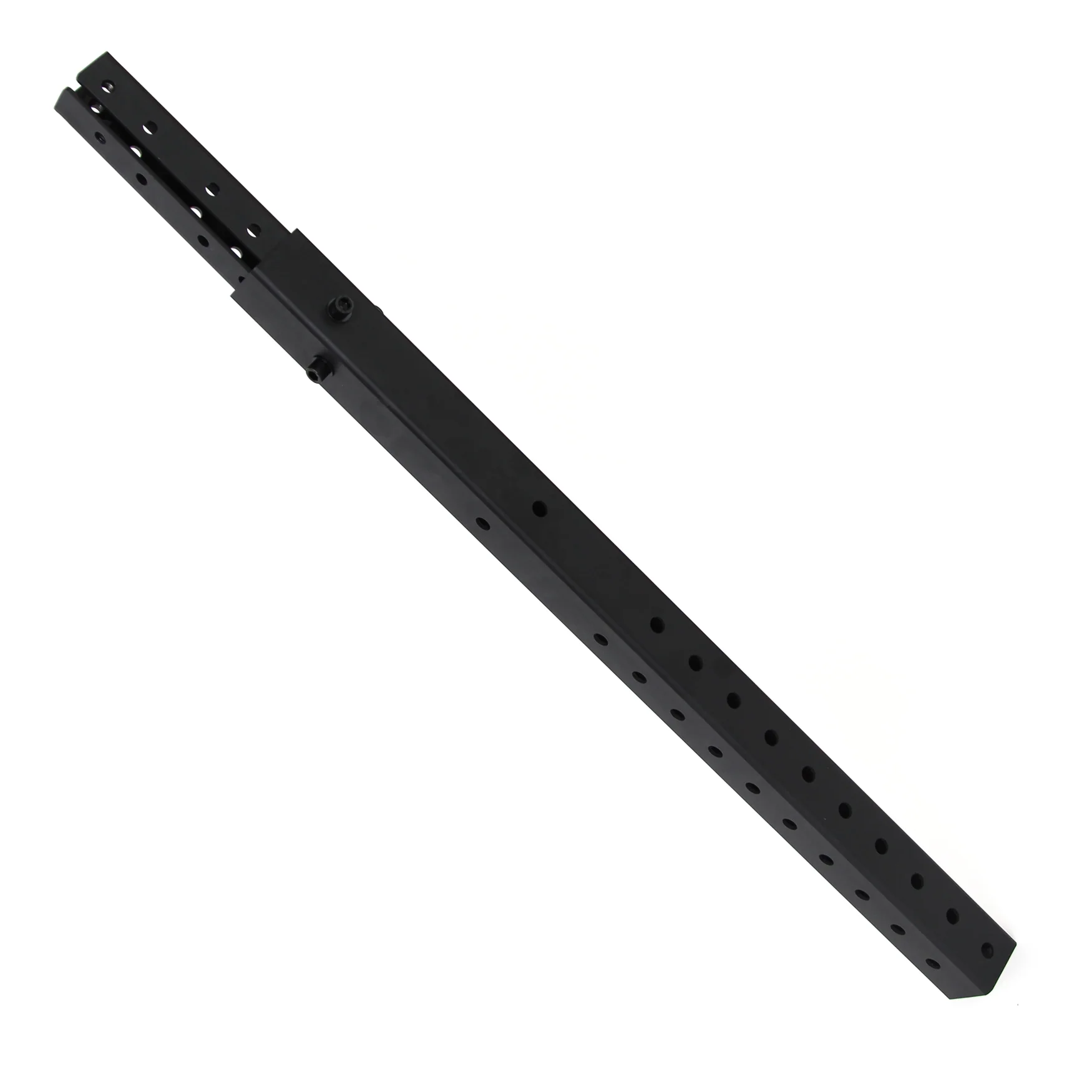

Simply attach the 3ft extension piece to your 9ft upright to get the full 12ft length.



Specifications

• Material: High gauge steel tubing coated in durable, texture powder coat
• Total Height 3ft: 1090mm
• Total Height 9ft: 2700mm
• Total Height 12ft: 3650mm (includes 1 x 3ft and 1 x 9ft piece)
• Tube Thickness: 65mm
• Steel Gauge Thickness: 5mm

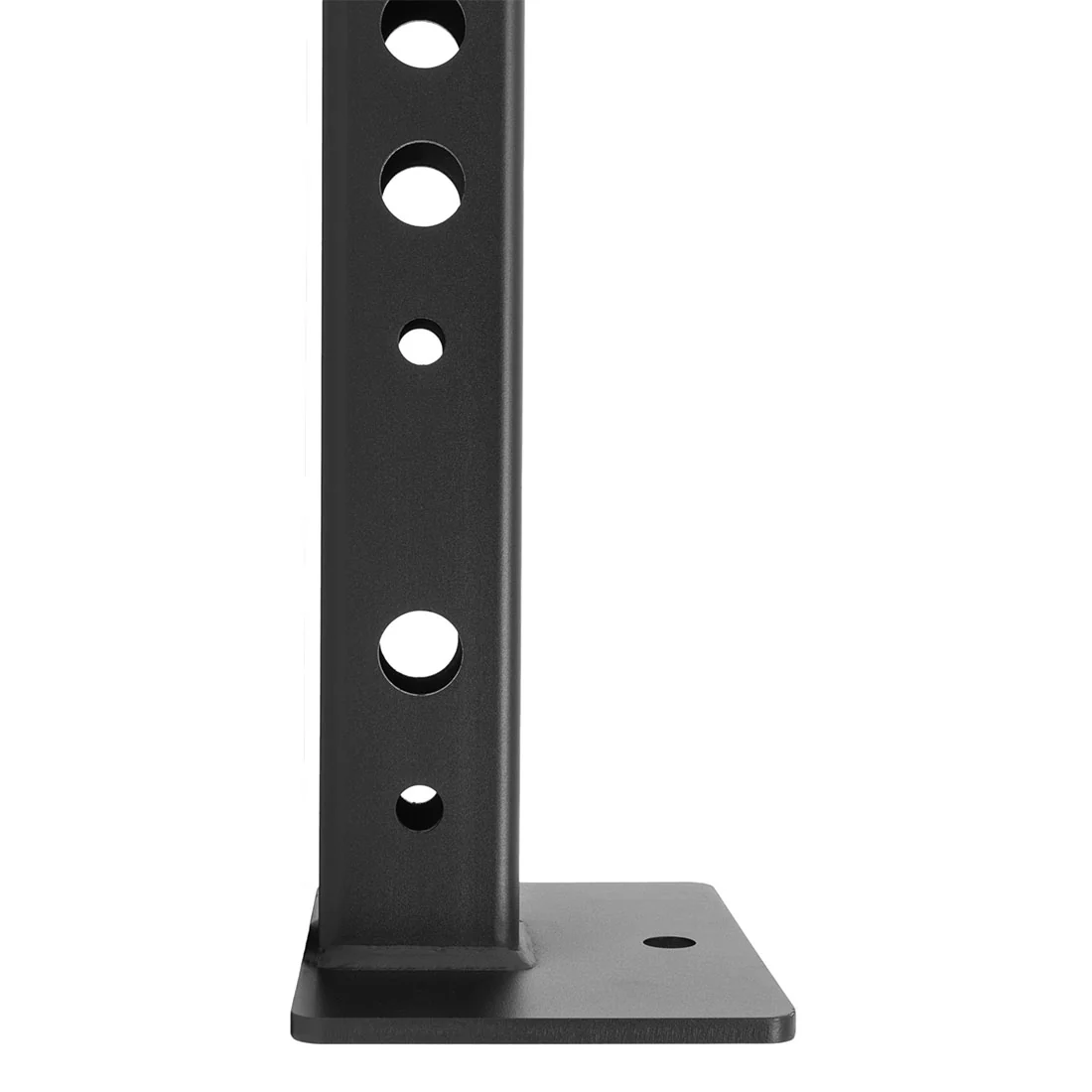

• Steel Plate Thickness: 10mm
• Warranty: Limited lifetime (structural)

For outdoor use, you will need to use stainless steel or galvanized nuts and bolts to assemble the rig.
